Power Control System 50 AMP

Manuals Brochure Power Control System System Wiring Diagram Power Control Brochure PCS Owners Manual PCS Installation Instructions Part #’s 00-10020-000 – Includes: 8 Main Stabs Interfaced, 4 Sub Stabs Interfaced (Controller NOT included) 00-10020-005 – Includes: 00-10020-000 50A Service Panelboard 00-10020-500 50AMP PCS Controller (inside Panelboard) 00-10020-055 – Includes: 00-10020-000 50A Service Panelboard 00-10020-550 50AMP PCS Controller (inside Panelboard) 00-10020-100 – Includes: 12 Main Stabs Interfaced, No Sub Stabs (Controller NOT included) 00-10020-105 – Includes: 00-10020-100 50A Service Panelboard 00-10020-500 50AMP PCS Controller (inside Panelboard) 00-10020-170 – Includes: 00-10020-100 50A Service Panelboard 00-10070-000 50AMP Service w/with RV-C (inside Panelboard) 00-10020-200

Description

Manuals

Brochure

Power Control System System Wiring Diagram

Power Control Brochure

PCS Owners Manual

PCS Installation Instructions


Part #’s

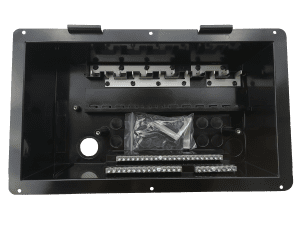

00-10020-000

– Includes:

8 Main Stabs Interfaced, 4 Sub Stabs Interfaced
(Controller NOT included)

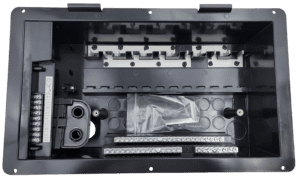

00-10020-005

– Includes:

00-10020-000 50A Service Panelboard
00-10020-500 50AMP PCS Controller
(inside Panelboard)

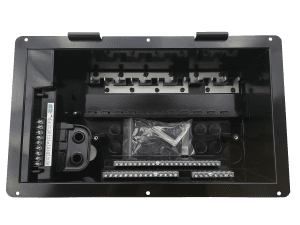

00-10020-055

– Includes:

00-10020-000 50A Service Panelboard
00-10020-550 50AMP PCS Controller
(inside Panelboard)

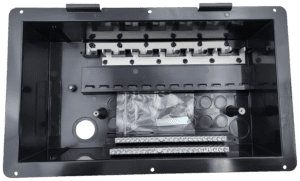

00-10020-100

– Includes:

12 Main Stabs Interfaced, No Sub Stabs (Controller NOT included)

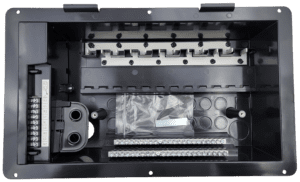

00-10020-105

– Includes:

00-10020-100 50A Service Panelboard
00-10020-500 50AMP PCS Controller
(inside Panelboard)

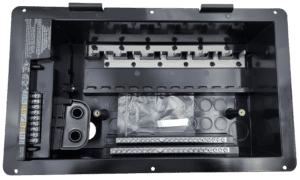

00-10020-170

– Includes:

00-10020-100 50A Service Panelboard
00-10070-000 50AMP Service w/with RV-C
(inside Panelboard)

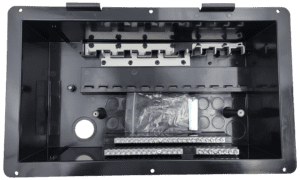

00-10020-200

– Includes:

8 Main Stabs Interfaced, 4 Sub Stabs, single buss for back-fed Breaker (Controller NOT included)

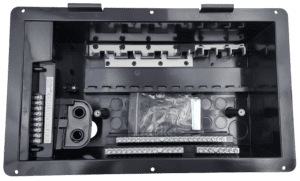

00-10020-205

– Includes:

00-10020-200 50A Service Panelboard
00-10020-500 50AMP PCS Controller
(inside Panelboard)

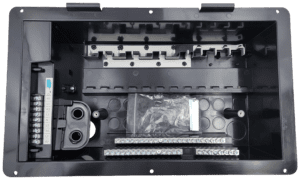

00-10020-255

-Includes:

00-10020-200 50A Service Panelboard
00-10020-550 50AMP PCS Controller
(inside Panelboard)

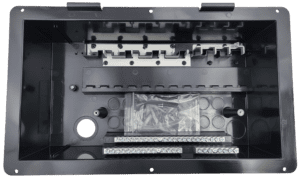

00-10020-300

– Includes:

8 Main Stabs Interfaced, 4 Sub Stabs, single buss w/main direct feed clamp (Controller NOT included)

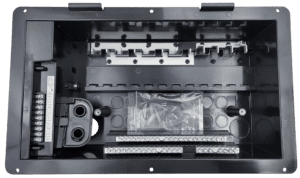

00-10020-305

– Includes:
00-10020-300 50A Service Panelboard
00-10020-500 50AMP PCS Controller
(inside Panelboard)

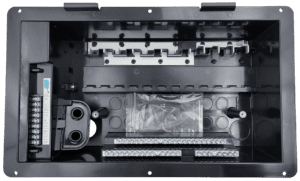

00-10020-355

– Includes:
00-10020-300 50A Service Panelboard
00-10020-550 50AMP PCS Controller
(inside Panelboard)

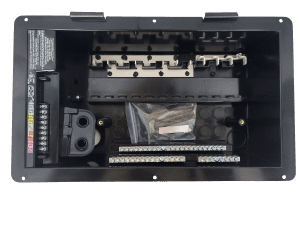

00-10020-370

– Includes:
00-10020-300 50A Service Panelboard
00-10070-000 50AMP Service w/with RV-C
(inside Panelboard)

00-10020-400

– Discontinued

Includes:

8 Main Stabs Interfaced
(Controller NOT Included)

00-10020-405

– Discontinued

Includes:

00-10020-400 50A Service Panelboard

00-10020-500 50AMP PCS Controller
(inside Panelboard)
